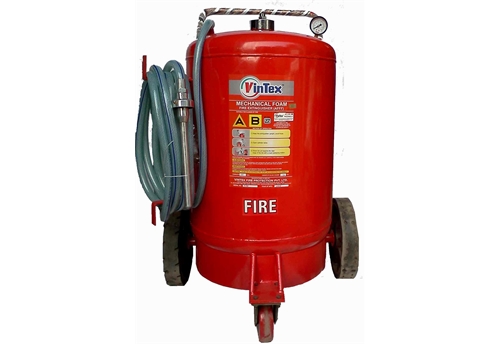

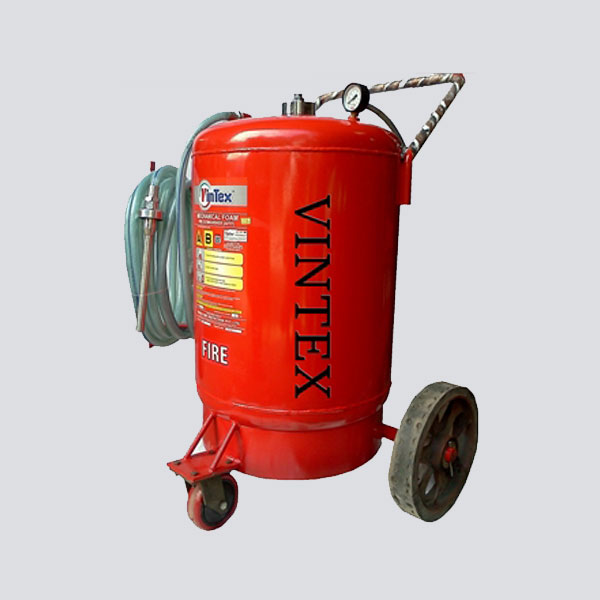

| Model | VFPM 135 |
| Capacity | 135 Ltrs. |
| IS No. | 14951 |
| Fire Rating | --- |
| Operating Temperature | 27 ± 5°C |
| Min. Jet Length (in mtrs) | 12 Mtrs. |
| Discharge Percentage Min. | 90% |
| Discharge Time Min. | 60-180 Seconds |
| Charge Pressure | --- |
| Test Pressure | 30 Kgf / cm² |
| Operating Valves | Conventional |
| Extinguisher Media | AFFF IS: 4989 |
| Expellant | Co2 |
| Anti Corrosive Treatment | Phosphating (7 Tanks) |
| Painting | Epoxy Polyester Powder Coating |
| Tare Weight ( Approximate) | 84 kg |
| Full Weight ( Approximate) | 219 kg |
CHARGE
The charge shall consist of foam concentrate conforming to IS 4989 (Part 2) and quantity not less than 8 Liter (for 6 percent concentrate) or 4 Liter (for 3 percent concentrate) and balance quantity of water to make the foam water solution to 135 litres.
