| Model | VFPA 9 |
| Capacity | 9 Kgs. |
| IS No. | 15683 |
| Fire Rating | 3A-34B, C |
| Operating Temperature | -20 ° C TO +55° C |
| Min. Jet Length (in mtrs) | 2 Mtrs. |
| Discharge Percentage Min. | 85% |
| Discharge Time Min. | 13 Seconds |
| Charge Pressure | 15 Kgf / cm² |
| Test Pressure | 35 Kgf / cm² |
| Operating Valves | Squeeze Grip Type |
| Extinguisher Media | Dry Powder 4308 / 14609 |
| Expellant | Dry Nitrogen |
| Anti Corrosive Treatment | Phosphating (7 Tanks) |
| Painting | Epoxy Polyester Powder Coating |
| Tare Weight ( Approximate) | 5.5 kg |
| Full Weight ( Approximate) | 14.5 kg |

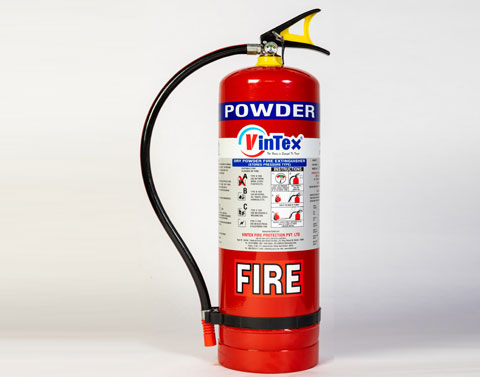

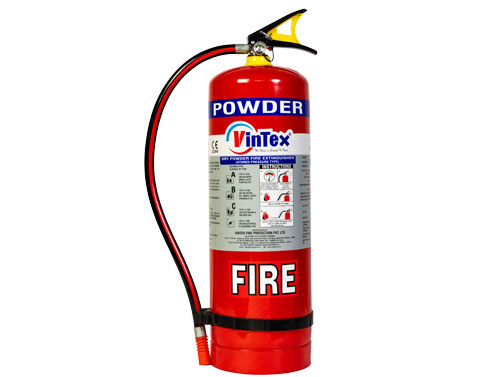

Vintex Fire Protection manufactures and supplies the VFPA 9 stored-pressure dry-powder extinguisher for bulk, project and dealer enquiries. The published table identifies a 9 kg capacity, IS No. 15683 and a 3A-34B, C fire rating. Final selection must follow the marked rating, the site fire-risk assessment and applicable requirements.
Product and procurement
For a useful quotation, share the required powder type, application, quantity, mounting requirement, delivery location and any consultant, certification or tender specification. Vintex can then confirm the applicable model, documentation, availability, freight and lead time.
Dry powder can leave residue and reduce visibility after discharge. Suitability should be assessed for the specific occupancy, equipment and hazard; do not select an extinguisher only by its capacity or a generic description.
Before you order
Identify the expected fire classes, occupancy and site-specific risk assessment.
Match the product label, fire rating, applicable certification and approved data sheet.
Check quantity, mounting, accessibility, visibility and travel-distance requirements.
Confirm inspection, servicing, refilling and replacement arrangements with competent personnel.
India enquiry coverage
Vintex accepts 9 kg ABC/BC fire-extinguisher enquiries from Mumbai and destinations across India. The locations below indicate enquiry and delivery coverage; product availability, freight, lead time and dealer status are confirmed case by case.
Visakhapatnam, Vijayawada, Guntur, Tirupati and Nellore
Itanagar, Naharlagun, Pasighat and Tawang
Guwahati, Dibrugarh, Silchar, Jorhat and Tezpur
Patna, Gaya, Muzaffarpur, Bhagalpur and Darbhanga
Raipur, Bhilai, Durg, Bilaspur and Korba
Panaji, Margao, Vasco da Gama, Mapusa and Ponda
Ahmedabad, Surat, Vadodara, Rajkot and Gandhinagar
Gurugram, Faridabad, Panipat, Ambala and Hisar
Shimla, Baddi, Solan, Mandi and Dharamshala
Ranchi, Jamshedpur, Dhanbad, Bokaro and Deoghar
Bengaluru, Mysuru, Mangaluru, Hubballi and Belagavi
Kochi, Thiruvananthapuram, Kozhikode, Thrissur and Kollam
Indore, Bhopal, Jabalpur, Gwalior and Ujjain
Mumbai, Navi Mumbai, Thane, Pune, Nashik, Nagpur and Aurangabad
Imphal, Thoubal, Bishnupur and Churachandpur
Shillong, Tura, Jowai and Nongpoh
Aizawl, Lunglei, Champhai and Kolasib
Dimapur, Kohima, Mokokchung and Wokha
Bhubaneswar, Cuttack, Rourkela, Sambalpur and Berhampur
Ludhiana, Amritsar, Jalandhar, Patiala and Mohali
Jaipur, Jodhpur, Udaipur, Kota and Ajmer
Gangtok, Namchi, Gyalshing and Mangan
Chennai, Coimbatore, Madurai, Tiruchirappalli and Salem
Hyderabad, Warangal, Nizamabad, Karimnagar and Khammam
Agartala, Udaipur, Dharmanagar and Kailasahar
Lucknow, Noida, Ghaziabad, Kanpur, Agra and Varanasi
Dehradun, Haridwar, Haldwani, Roorkee and Rudrapur
Kolkata, Howrah, Durgapur, Siliguri and Asansol
Port Blair and surrounding serviceable destinations
Chandigarh and the Tricity region
Silvassa, Daman and Diu
New Delhi and serviceable National Capital Region destinations
Jammu, Srinagar, Anantnag and Baramulla
Leh, Kargil and serviceable project destinations
Kavaratti and serviceable island destinations
Puducherry, Karaikal, Mahe and Yanam
Location references describe enquiry and potential delivery destinations only. They do not claim a Vintex branch, warehouse, inventory point or authorised dealer in every listed city. Contact Vintex to verify serviceability and current dealer status.
Frequently asked questions
The visible technical table lists model VFPA 9 with a 9 kg capacity.
The table shows IS number 15683 and fire rating 3A-34B, C. Confirm the supplied model label, certification and suitability for the assessed hazard before ordering.
The table lists 15 kgf/cm² charge pressure, 35 kgf/cm² test pressure, at least 85% discharge, at least 13 seconds discharge time and a minimum jet length of 2 metres.
No. Selection must use the marked fire rating, site fire-risk assessment, applicable requirements, travel distance, environment and the ability of intended users to operate the extinguisher.
Share the powder type required, application, quantity, certification and mounting needs, delivery location and consultant or tender specification.
Yes. Vintex accepts product, bulk-supply, project and prospective dealer enquiries from Mumbai and locations throughout India. Availability, documentation, freight, lead time and dealer status are confirmed for each enquiry.
